Patents

Two inventions, both developed at Eskişehir Technical University with Selçuk Ekici and T. Hikmet Karakoç. Both are registered in Türkiye and were filed internationally under the Patent Cooperation Treaty (PCT).

WO2024144643A1

Rib structure with fishbone imitation enabling shape change in the wing via the method of the rear spar rotation

A wing that changes its shape in flight while adding almost no weight.

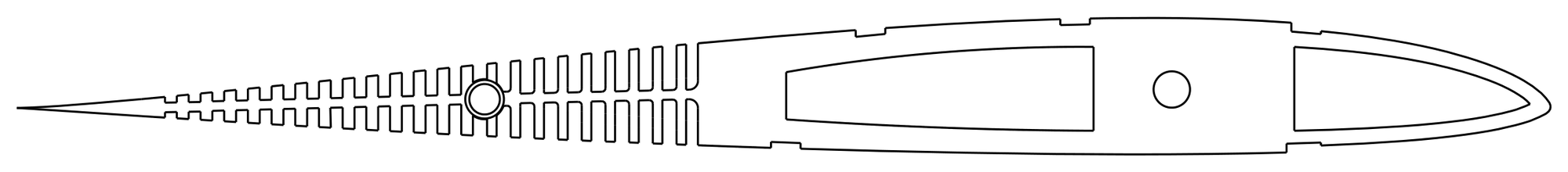

The fishbone rib, with bones tapering toward the trailing edge.
FIG. 1. The fishbone rib, with bones tapering toward the trailing edge.

How it works

The ribs are shaped like a fish skeleton: a backbone with tapering bones. A motor rotates the rear spar, the rear part of each rib bends with it, and the trailing edge of the wing deforms smoothly. The aircraft can adapt the wing to each phase of flight.

Protection

  • TürkiyePatent granted, 2025TR 2022/021698
  • United StatesUnder examinationUS 19/144,655
  • InternationalPCT application publishedPCT/TR2023/051558
Priority date
30 December 2022
PCT publication
4 July 2024
Inventors
Emre Özbek, Selçuk Ekici, T. Hikmet Karakoç
Applicant
Eskişehir Technical University
Related paper
Drones, 2023

Google PatentsEspacenet

Drawings and prototype

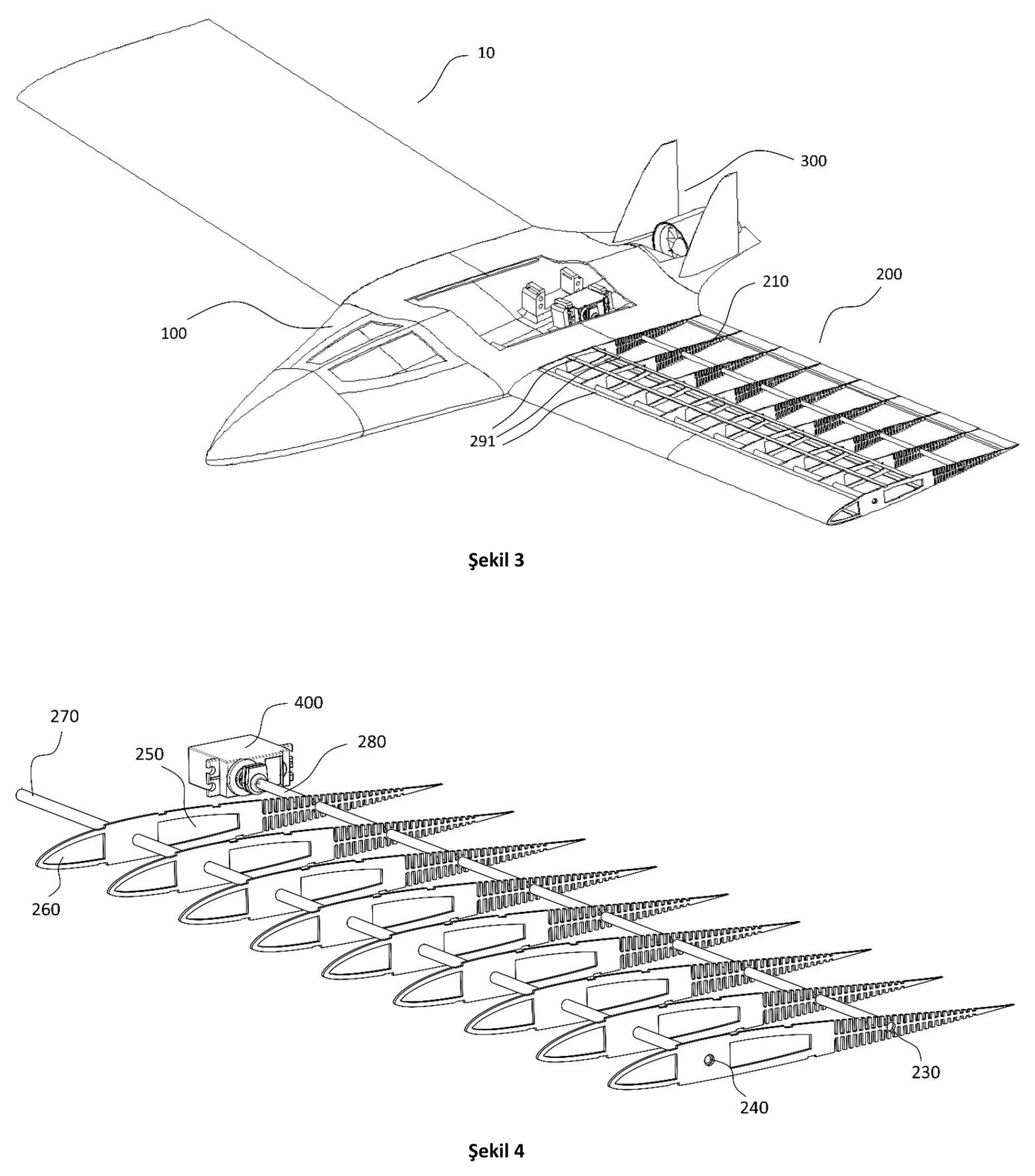

The ribs in the wing of a mini UAV, and the rib set on its spars (patent drawing).
FIG. 2. The ribs in the wing of a mini UAV, and the rib set on its spars (patent drawing).

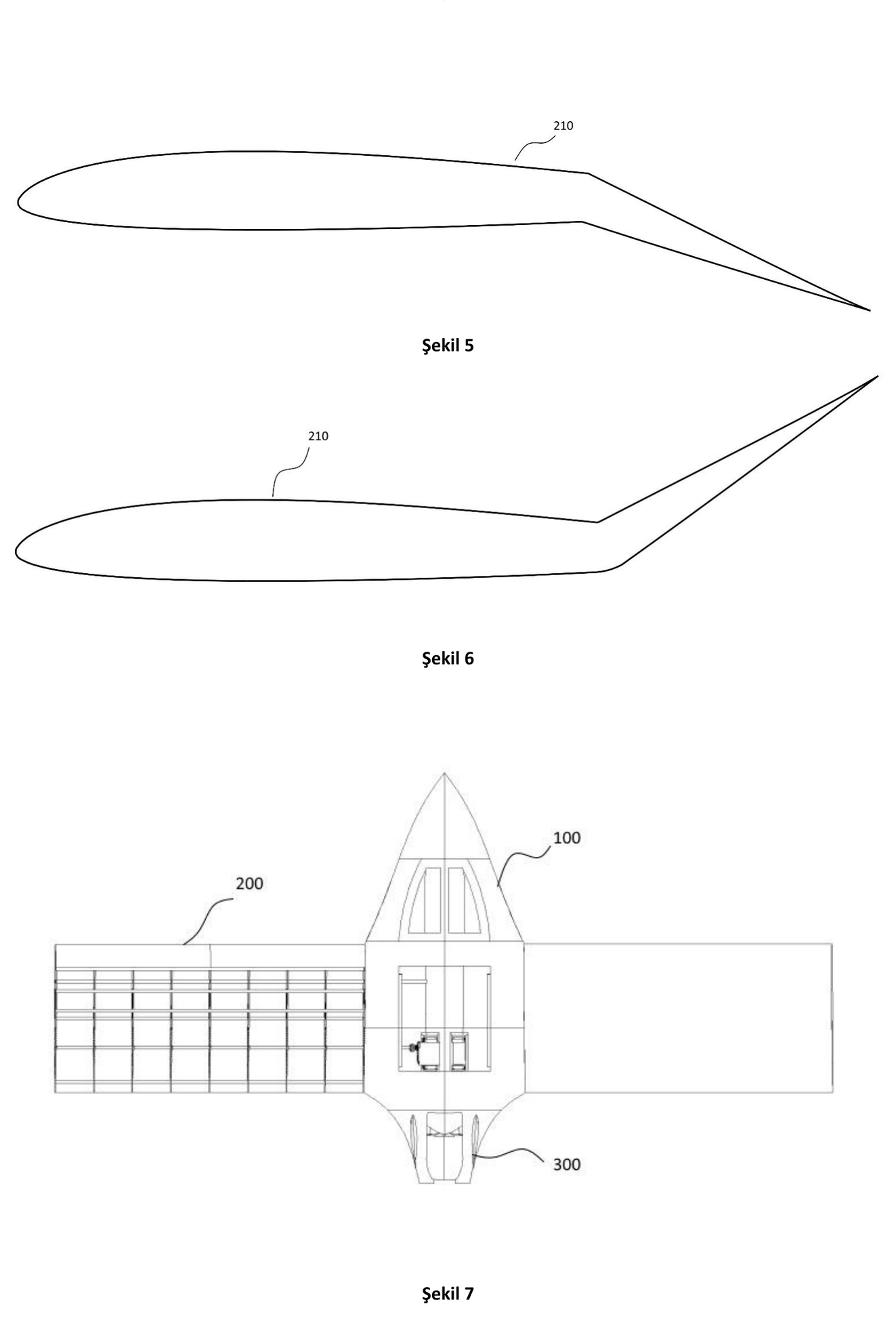

The airfoil bending up and down as the rear spar rotates (patent drawing).
FIG. 3. The airfoil bending up and down as the rear spar rotates (patent drawing).
Vatoz, the prototype UAV with fishbone ribs under its covering (2022).
FIG. 4. Vatoz, the prototype UAV with fishbone ribs under its covering (2022).

WO2022216264A1

An aerostat-type unmanned aerial vehicle system for reducing air pollution

A tethered balloon that cleans the air where pollution is temporary, such as construction sites or fields where stubble is burned.

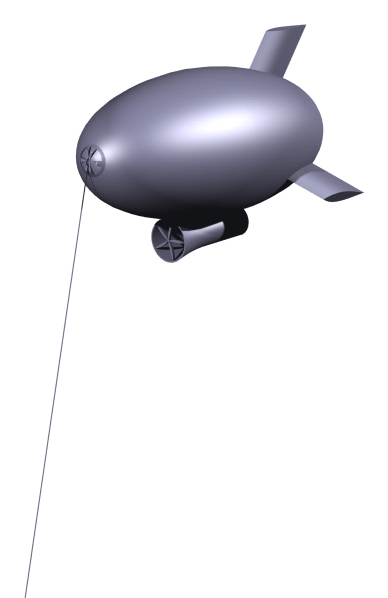

The aerostat with its filtration unit.
FIG. 1. The aerostat with its filtration unit.

How it works

A helium-filled balloon carries air filtration units with HEPA filters and an electric fan. It is powered from the ground through its tether cable and carries navigation lights, so it can stay up around the clock.

Protection

  • TürkiyeRegistered as a utility modelTR 2021 006290 Y
  • InternationalPCT application publishedWO2022216264A1
Priority date
8 April 2021
PCT publication
13 October 2022
Inventors
Emre Özbek, Selçuk Ekici, T. Hikmet Karakoç
Applicant
Eskişehir Technical University

Google PatentsEspacenet

Drawings and prototype

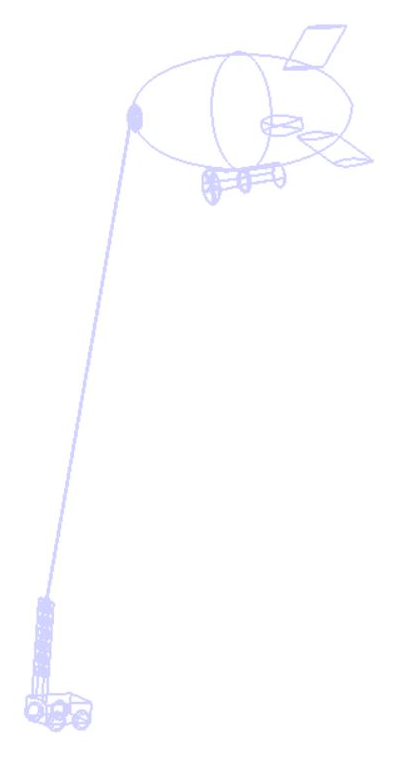

The full system, with balloon, tether cable and ground unit.
FIG. 2. The full system, with balloon, tether cable and ground unit.

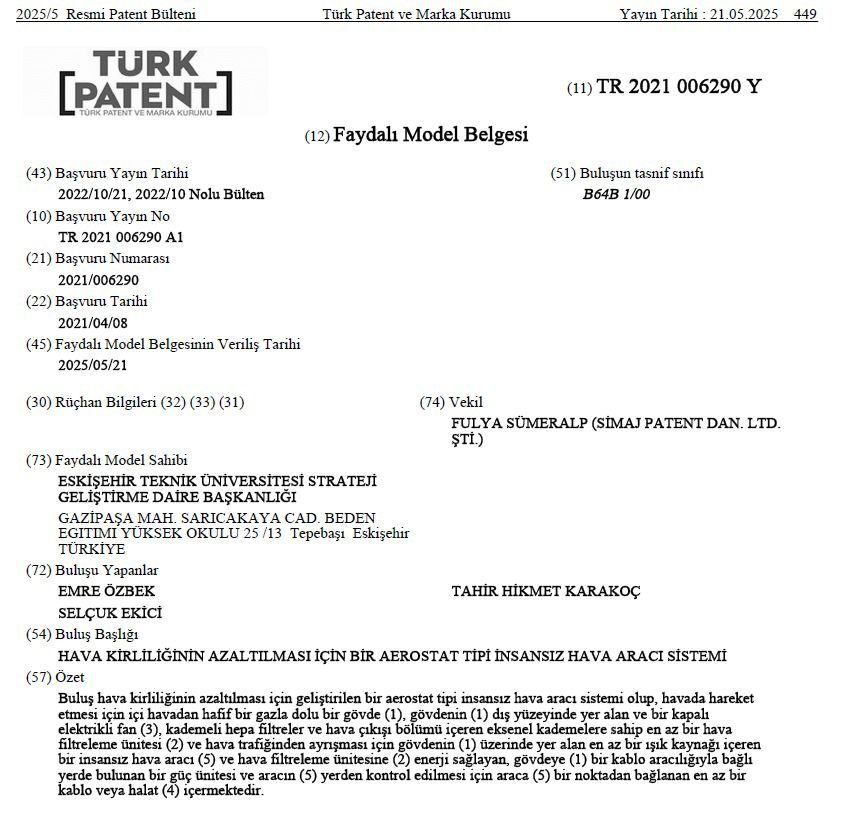

The registration in TÜRKPATENT’s Official Patent Bulletin.
FIG. 3. The registration in TÜRKPATENT’s Official Patent Bulletin.
